90 Degree Low Glare Led Street Light Modules for Public Areas
Lighting
Quick Details:
1. Dimension: L236xW70xH6.9mm
2. Beam Angle: 90 degree
3. Match Led: SMD 3030 , OSRAM S5 ,
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat
Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name | 90 Degree Low Glare Led Street Light Modules for Public Areas
Lighting |
| Model No | SOE-SL64W-90 |
| Main parts | 64W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable
, Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | 236x70x6.9mm |
| PCB Size | 220x54x1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit | 8 series 8 parallel |
| LED details | 6-6.8V , 150mA , 120-130lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the
defective part. We will send you replacement without extra charger,
or offer refund. |
| Main market | Europe , South America , North America , Asia |
Led Street Light Lens Drawing:

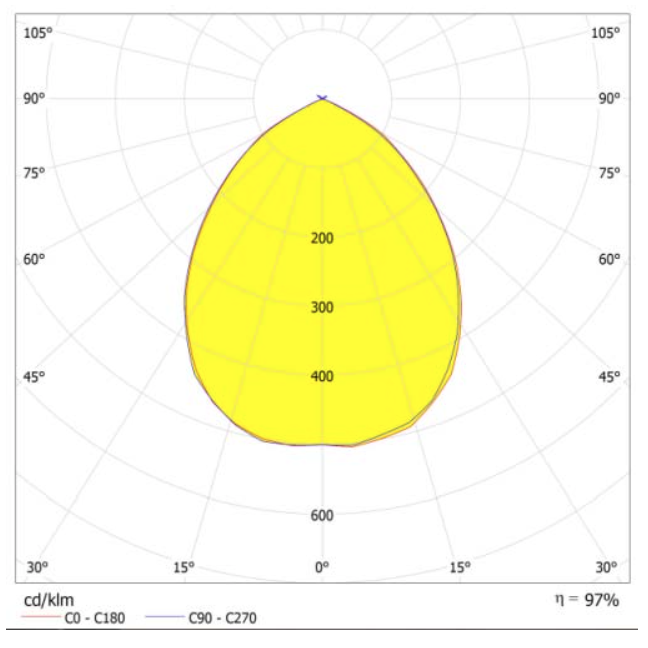

90 degree Led Street Light Lens Distribution:
Storage: Do not store in dusty place, or expose under corrosive
environment
Contact: Do not touch the lens surface with bare-hand. Please use
gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap,
water and soft cloth.Do not use any commercial cleaning solvents.
Features :
- This SKD 64W Street Light lens with PCB Module is best choice to
retrofit the old lamps or assemble power lamps like 50W,100W and so
on .
- It's the lowest total cost solution ,they can replace existing
Metal Halide or HPS bulbs, the old housings can be re-used. The
total cost is significantly reduced compared with using new
complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius
degree.
- Optic lenses are available for projects that need smaller beam
angles, like 80x150°, 90x120°, 90°, 60° , 30° etc.
Related SMD 3030 Led Street Light Modules:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*T) |
SOE-SL64W-30
| 30° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-60
| 60° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-90
| 90° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-90x120
| 90x120° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-80x150
| 80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
SOE-SL64W-S80x150
| 80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
Competitive Advantage:
Wide range of light distributions
High luminous efficacy
High quality of light thanks to low glare, no scattered light
Fast time to market thanks to easy design-in
Very effective thermal management thanks to uniform heat
dissipation
Application:
The design of Street Light Module joins LED and IP65 water/dust
proof. It takes advantage of energy saving and different angles ,
and adapts to different requirement of street lighting, like 60w,
120w by changing number of Led modules. This street Light Module
can be used by replacing light source and bracket , Applicable for
street light and solar street light, Tunnel Light, Gas station
Light and so on
Areas of application
Technical street lighting
Decorative outdoor lighting in public areas
Area lighting in public areas
