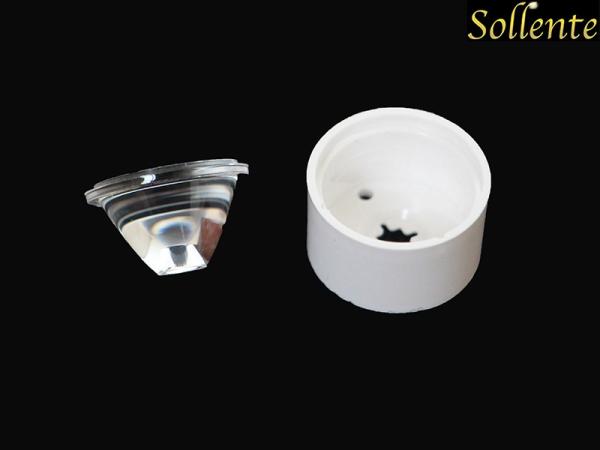

    20mm 1W 3W Optical PMMA LED Lens Concave Frosted For Led Spotlight Lens

    Ask Lasest Price
    Brand Name : Sollente
    Model Number : SOE-XP2015
    Certification : ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 10000 pcs / week
    Delivery Time : 3-14 working days
    • Product Details
    • Company Profile

    20mm 1W 3W Optical PMMA LED Lens Concave Frosted For Led Spotlight Lens

    20mm 1W 3W Optical PMMA LED Lens Concave Frosted For Led Spotlight Lens

    Quick Details:

    1. Dimension: Lens Diameter 20mm , holder 22mm
    2. Beam Angle: 15°, 25°, 40°, 60°, 80°
    3. Match Led: Cree XTE XPE XPG , SMD 3535, SMD 3030, SMD 2525
    4. Materials : Optical Grade PC
    5. Accessories: Led lens , PCB soldering Led
    6. Efficiency: >91%


    20mm Led Lens Outline:




    Specifications:

    Product Name20mm 1W 3W Optical PMMA LED Lens Concave Frosted For Led Spotlight Lens
    Model NoSOE-XP2015
    Main parts1W Lens + MCPCB mounting leds
    Lens MaterialPMMA Optical
    MOQ1pcs
    Driver enclosureplastic or aluminum case for choice
    PCB Circuit

    1 in series

    LED details3-3.6V/W, 350mA, 150lm/w
    CertificateROHS, SGS,CE
    Quality guaranteeIf you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
    Main marketEurope , South America , North America , Asia





    Lens surface could be Frosted, Bead, or Transparent





    Related Led Optics Lens:

    Model No.Lens angleLens size(Diameter*Height)PCB size(Diameter*Thickness)

    SOE-XP2015

    15°22x12.91mm20X1.5mm

    SOE-XP2025


    25°22x12.91mm20X1.5mm

    SOE-XP2040


    40°22x12.91mm20X1.5mm

    SOE-XP2060


    60°22x12.91mm

    SOE-XP2080


    80°22x12.91mm

    Packing and Shipping:
    1. Express: Shipped by FEDEX/DHL/UPS/TNT
    2. Air cargo: It takes about one week to arrive the destination.
    3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
    4. Payment terms: TT, PayPal, Western Union
    5. Lead time : Within 3-10 working days.
    6. Bulk order Lead time :Within 5-10 working days.
    7. Shipping port: Shenzhen/Yantian/Shekou
    8. Packaging: Exported package, also can be customized according to customer requirements.


    Competitive Advantage:
    Following trend of energy-saving and environmental development, we have technical co-operation with local college and international famous brand in the area of Led light source technology and producing various LED lighting optical accessories which meet the need in all field of LED illumination.




    Application:
    Various types of Indoor Lighting. Led Flood Light, Led Wall washer Light and so on.

    LED Applications


    A few years ago, these tiny lights set out to “conquer” displays and signal indicators. Much has happened since then. Today, LEDs are THE lighting medium for general lighting applications. Thanks to improved luminous efficacy and brightness, along with efficiency and long life, they have revolutionized the market.


    Changing political and social conditions have contributed to the LED’s success. It meets the need for energy-efficient lighting solutions unlike any other light source. This is where the LED is groundbreaking.


    You can find LEDs in all areas of life. Whether indoors or outdoors, for decorative or functional use - LEDs offer fascinating possibilities now and in future.

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 4-6 working days, mass production time needs 10-18 working days.

    Q3. Do you have any MOQ?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and places deposit for formal order.

    Fourthly We arrange the production.
