CXB 2520 Plastic Trays LED COB Holder 39mm Diameter Simplify
Installation
Quick Details:
1. Dimension: Dia39mm H4.15mm
2. Match Led: Cree CXA2520, CXA2530, CXA2540, CXA2590
COB Led Array base 24x24mm, Luminous surface diameter 21.2mm
3. Materials : PET V0
4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)
Specification:
| Product Model | C2520 |
| Voltage Rating | 72 V |
| Amperage Rating | 3.6 |
| Weight | 3g |
| Screw Size | M3 |
| Wire Strip Length | 6mm (.24") |
| Wire | 18-22AWG Push-In (.32-.81mm2) |
| Body Material | PBT UL94 V-0 |
| Contacts | Beryllium Copper Nickel Plated |
| Holding Clip | Stainless Steel |
| Screw Torque (Max) | 10 LBS |
| Temp Rating | 155C |
| RoHS Compliant | Yes |
| Package Quantity | 1,000 per carton |
| Packaging | Plastic Trays |
| Array Source | Cree |
| Array Series | CXA2520, CXB2530, CXA2540, CXA2590 |
| UL File # | E476326 |
It's a single piece, solderless connector for Cree CXA/B 25xx
series
Simple screw down and poke in wires makes assembly of the COB
device and easy and clean installation.

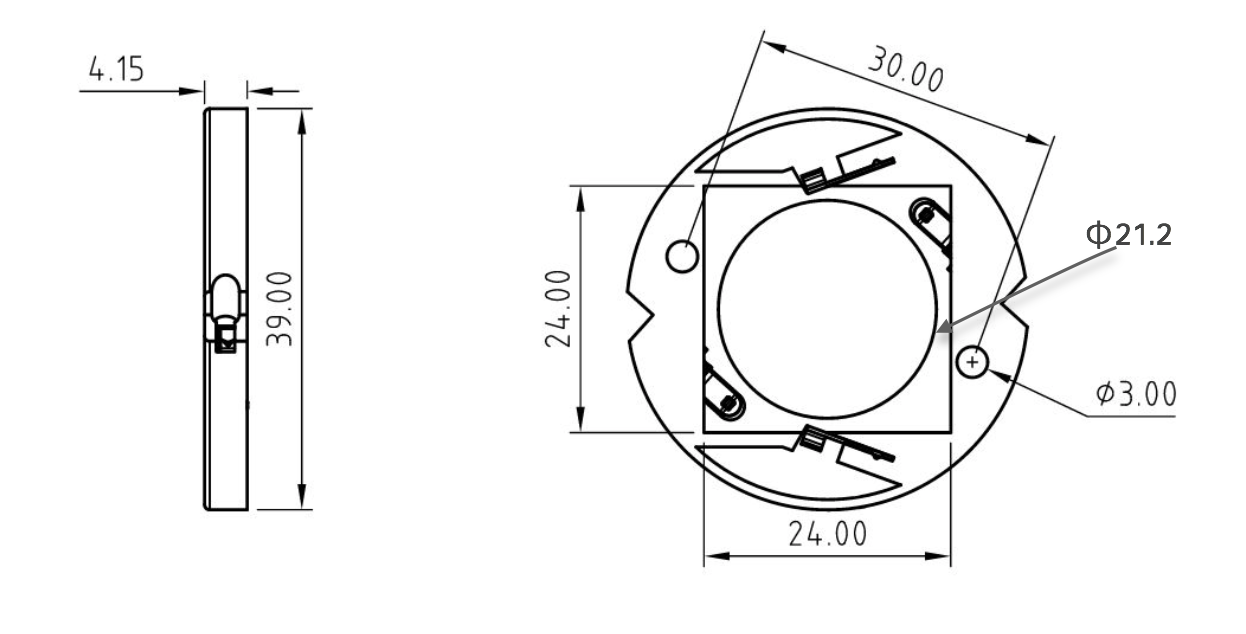

COB HOLDER Drawing:
Related COB HOLDER:
| Model No. | Lens Dimensions | Match Led |
C1512
| D35mm*H4.15mm | CXA1507, CXA1512, CXA1520 |
C1816
| D35mm*H4.15mm | CXA1816, CXB1820, CXA1850 |
C1830
| D35mm*H4.15mm | CXA1830 |
C2520
| D39mm*H4.15mm | CXA2520, CXB2530, CXA2540, CXA2590 |
C3050
| D44mm*H4.15mm | CXA3050, CXA3070 |
C3590
| D59.5mm*H3mm+3mm | CXA/CXB3590 |
CT1926
| D35mm*H4.15mm | Citizen Series: AC COB CLL296/297/298 |
| E1313 | D36mm*H4mm | Citizen Series: CLL022, CLU024, CLU026
Edison Series: HM05, HM09, HM13 |
| E1919 | D36mm*H4mm | Citizen Series: CLL032, CLU034, CLU036
Edison Series: HM16, HM24, HM30 |
Product Application:
Led Street Light
Led High bay Light
Led Gas Station Light
Led Tunnel Light
Led Spot Light
