Street Lighting High Power LED PCB Module With 70 X 70 Degree
Optical Lens
Quick Details:
1. Dimension: L151.8*W95.4*11.5mm
2. Beam Angle: 70x70 degree
3. Match Led: High power led , K2 , P4
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat
Sink, Led driver
6. Efficiency: >91%
Specifications:
| Product Name | Street Lighting High Power LED PCB Module With 70 X 70 Degree
Optical Lens |
| Model No | SOE-SL28W-LM70X70 |
| Main parts | 28W Lens+ Silicone gasket + AL PCB mounting leds + LED driver
(Meanwell Led driver is available) |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | L151.8*W95.4*11.5mm |
| PCB Size | L132*W75*H1.6mm , PCB could design as clients reuqest |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit | 14 series 2 parallel |
| Led details | 3-3.6V , 160-170 lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the
defective part. We will send you replacement without extra charger,
or offer refund. |
| Main market | Europe , South America , North America |

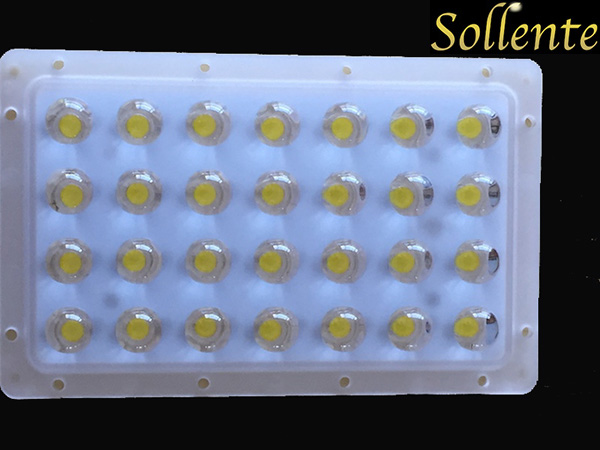

Led Tunnel Lighting Modules Pictures:
Led Tunnel Lighting Modules Lens Drawing:
70x70 degree Led Street Light Lens Distribution:
Features :
- This SKD 28W Street Light lens with PCB Module is best choice to
retrofit the old lamps or assemble power lamps , each Led could use
as 1-3w , one module could be 28W or 56W.
- It's the lowest total cost solution ,they can replace existing
Metal Halide or HPS bulbs, the old housings can be re-used. The
total cost is significantly reduced compared with using new
complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 60 Celsius
degree.
- Optic lenses are available for projects that need smaller beam
angles, like 70x140 degree , 65x135 degree.
Related High power Led Street Light Lens:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
SOE-SL28W-LM70x140
| 70x140° | 151.8*95.9*9.6mm | 132*75*1.6mm |
SOE-SL28W-LM70X70
| 70X70° | 151.8*95.4*11.5mm | 132*75*1.6mm |
SOE-SL28W-CR65X135
| 65X135° | 151.8*95.9*8mm | 132*75*1.6mm |
28W Modules has a range of Street light and High bay light modules
which have multiple lenses in a single array. Lens modules provide
an easy and cost effective solution. All the Led modules are
designed to allow modularization of light engines. They are also
future-proof solutions allowing customers to easily adapt into
latest generation of LEDs without compromising the design and
performance of the luminaire.
Competitive Advantage:
1). Our High power led using high quality imported Bridgelux 45mil
Led chip with LM-80 test.
2). CE driver, very easy for repair/replacement. We also could
provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or
non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps,
reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
Application:
The design of Street Light Module joins LED and IP65 water/dust
proof. It takes advantage of energy saving and different angles ,
and adapts to different requirement of street lighting, like 60w,
120w by changing number of Led modules. This street Light Module
can be used by replacing light source and bracket , Applicable for
street light and solar street light, Tunnel Light, Gas station
Light and so on
