115 Degree led glass lens for 30-100w Tennis court Area Lighting
Quick Detail:
1. Dimension: Dia 78mm Height 26mm
2. Beam Angle: 110-120 degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 53mm
7. Application: Led high bay light, Flood light, Flashing light,
Led Spot Light
Specifications:
Product Model
| SOE-HB78-23TW | Product specification | Φ78mm*H26mm |
Luminous angle
| 110-120° | Luminance distribution | 10~100W |
Material
| High borosilicate3.3 | Transmittance | 92% |
Temperature resistance
| -50℃~+520℃ | Tolerances | ±0.1mm |
Product applications
| High Bay Lights, Flood Lights, Industrial Light, Factory Light |
Direction for Use
Please use some soft paper or pure water to clear the lens;
Don't use any industrial solvent to clean the lens surface, such as
alcohol;
Storage Environment: Temperature 0-40°C, Humidity 30%-95%
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Led Glass Lens Drawing:

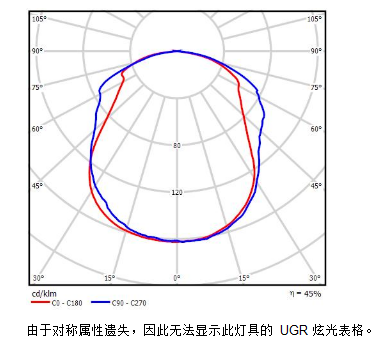

Led Glass Lens Distribution:
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
SOE-HB50-40
| 40° | D50mm*H28mm | 10-100W |
SOE-HB50-90
| 90° | D50mm*H24mm | 10-100W |
SOE-HB60-35
| 35° | D66mm*H48mm | 10-100W |
SOE-HB60-60
| 60° | D66mm*H34mm | 10-100W |
SOE-HB60-90
| 90° | D66mm*H17mm | 10-100W |
SOE-HB78-45
| 45° | D78mm*H44mm | 10-100W |
SOE-HB78-60
| 60° | D78mm*H40mm | 50-200W |
SOE-HB78-90
| 90° | D78mm*H35mm | 50-200W |
SOE-HB78-120
| 120° | D78mm*H26mm | 50-200W |
SOE-HB100-60
| 60° | D100mm*H39mm | 50-200W |
SOE-HB100-90
| 90° | D100mm*H35mm | 50-200W |
SOE-HB100-120
| 120° | D100mm*H33mm | 50-200W |
SOE-HB109-120
| 120° | D109mm*H33mm | 50-200W |
SOE-HB130-110
| 110° | D130mm*H35mm | 50-300W |
Advantages
1. Top grade waterproof rank : IP65
2. Long lifespan > 50,000 hrs
3. Low voltage, safe for human
4. Green Light, protect for environment
5. Low power consumption , high efficiency
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial
factory, warehouse, stadium, hypermarket, supermarket and other
indoor environments.
Packing and Shipping:
1. Express: Shipped by FEDEX/DHL/UPS/TNT
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the
destination, depending on your actual requirements.
4. Payment terms: TT, PayPal, Western Union
5. Lead time : Within 3-10 working days.
6. Bulk order Lead time :Within 5-10 working days.
7. Shipping port: Shenzhen/Yantian/Shekou
8. Packaging: EXported package, also can be customized according to
customer requirements.
