90% Optical Efficiency PMMA 23mm Convexo-plane Lente For Led
Flashlight
Quick Detail:
1. Dimension: Dia 23mm Height 8mm
2. Beam Angle: 10-60 degree
3. Match Led: 1-10w LEDs
4. Materials : PMMA
5. Transmits: up to 92%
Specification:
| Product Name | 90% Optical Efficiency PMMA 23mm Convexo-plane Lente For Led
Flashlight |
| Model No | SOE-PL23 |
| Main parts | LENS |
| Lens Material | Optical GRATE PMMA |
| MOQ | 10pcs |
| Lens size | Diameter 23mm |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the
defective part. We will send you replacement without extra charger,
or offer refund. |
| Main market | Europe, South America, North America, Asia |

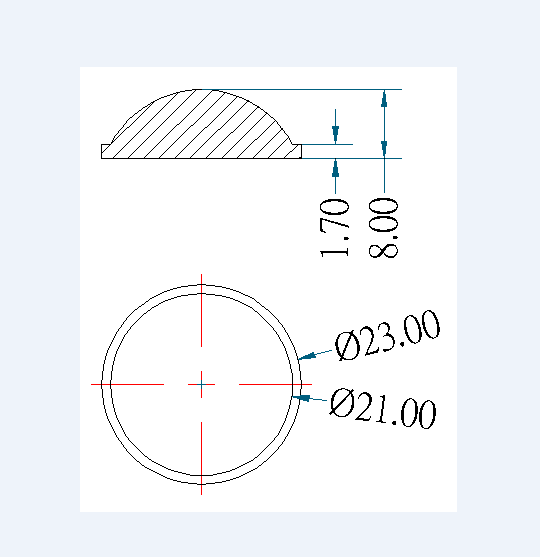

23mm Plano Convex Lens Drawing:
Related Plano Convex lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
SOE-PL20
| 60° | D20mm*H5.5mm | 1-3W |
SOE-PL23
| 60° | D23mm*H8mm | 1-3W |
SOE-PL29
| 60° | D29mm*H8.5mm | 1-3W |
SOE-PL35
| 60° | D35mm*H8mm | 1-10W |
SOE-PL38
| 60° | D38mm*H10mm | 1-10W |
SOE-PL48
| 60° | D40mm*H10mm | 1-10W |
Material:
PMMA is a strong and lightweight material.
PMMA transmits up to 92% of visible light (3 mm thickness), and
gives a reflection of about 4% from each of its surfaces due to its
refractive index (1.4905 at 589.3 nm). It filters ultraviolet (UV)
light at wavelengths below about 300 nm (similar to ordinary window
glass).
Product Application:
Led Flash Light
Led Industrial Light
Led Flood Light
Led Spot Light
