400-600W Metal Halide Replacement LED High Bay Light Fixtures
Quick Detail:
1. Dimension: Dia 130mm Height 5mm
2. Beam Angle: 110-120degree
3. Match Led: 50-300w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 94mm
7. Application: Industail Light , Led high bay light , Flood light
, Flashing light , Led Spot Light
Specifications:
| Product Name | 400-600W Metal Halide Replacement LED High Bay Light Fixtures |
| Model No | SOE-HB130 |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip
LED+Driver |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | Diameter 130mm Height 35mm |
| Led | COB Led 50-300W |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the
defective part. We will send you replacement without extra charger,
or offer refund. |
| Main market | Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass 3.3
Abbe number : 65
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1

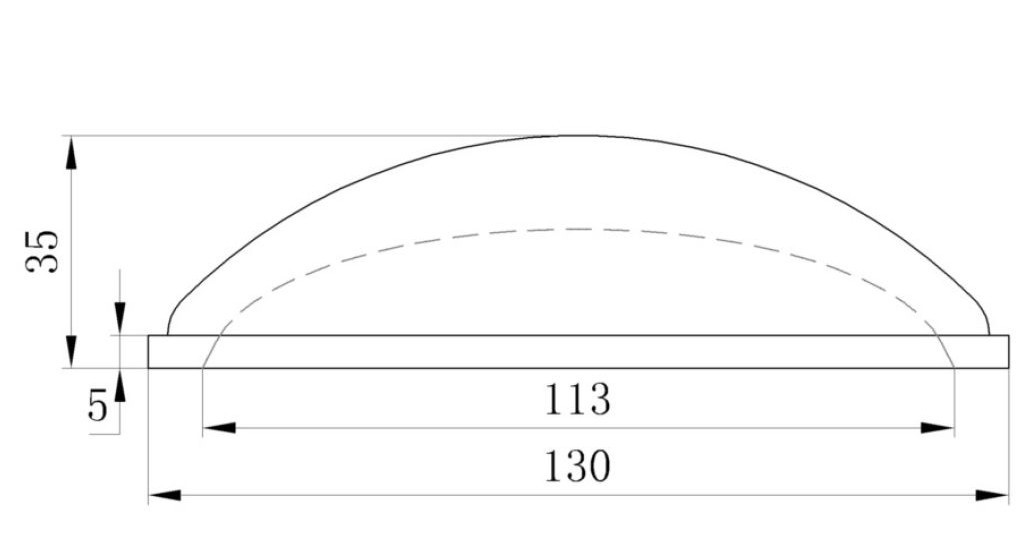

130mm Lens Drawing:
Led Glass Lens Distribution:
Direction for Use
Please use some soft paper or pure water to clear the lens;
Don't use any industrial solvent to clean the lens surface, such as
alcohol;
Storage Environment: Temperature 0-40°C, Humidity 30%-95%
Contact Details:
Attn :
| Alina Xiang |
Tel :
| +86 13825255182 |
Email :
| alina@sollente.com |
WhatApp :
| +86 13825255182 |
QQ :
| 45211682 |
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
SOE-HB50-40
| 40° | D50mm*H28mm | 10-100W |
SOE-HB50-90
| 90° | D50mm*H24mm | 10-100W |
SOE-HB60-35
| 35° | D66mm*H48mm | 10-100W |
SOE-HB60-60
| 60° | D66mm*H34mm | 10-100W |
SOE-HB60-90
| 90° | D66mm*H17mm | 10-100W |
SOE-HB78-45
| 45° | D78mm*H44mm | 10-100W |
SOE-HB78-60
| 60° | D78mm*H40mm | 50-200W |
SOE-HB78-90
| 90° | D78mm*H35mm | 50-200W |
SOE-HB78-120
| 120° | D78mm*H26mm | 50-200W |
SOE-HB100-60
| 60° | D100mm*H39mm | 50-200W |
SOE-HB100-90
| 90° | D100mm*H35mm | 50-200W |
SOE-HB100-120
| 120° | D100mm*H33mm | 50-200W |
SOE-HB109-120
| 120° | D109mm*H33mm | 50-200W |
SOE-HB130-110
| 110° | D130mm*H35mm | 50-300W |
Advantages of glass optical lens led street light retrofit kits:
1. One-Stop Service of led street light components and 6 years
specializing in Led lens industry
2. Complete supplying system with full range of Products , from
high power leds ,led optical lens ,led constant drivers ,MCPCB
modules and many led light components
3. Strict process and quality control
4. Strong design and production capability
Led glass lens Applications:
It is used for High bay and low bay lighting , Applicate for Industrial
factory, warehouse, stadium, hypermarket, supermarket and other
indoor environments.
FAQ
Q1. Can I have a sample order for led street light modules?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 4-6 working days, mass production time needs 10-18
working days.
Q3. Do you have any MOQ limit for led street light module order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7
days to arrive. Airline and sea shipping also optional.
