    White COB LED Holder Connectors For Array COB LED Modules UL Certification

    Ask Lasest Price
    Brand Name : Sollente
    Model Number : 1512-1919
    Payment Terms : T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 100000 pcs / week
    Delivery Time : 10-18 working days
    • Product Details
    • Company Profile

    White COB LED Holder Connectors For Array COB LED Modules UL Certification

    COB Led Holder Connectors With UL Certificate for Array COB Led Modules

    Quick Details:

    1. Dimension: Diameter 34mm 35mm 39mm 44mm
    2. Match Led: CITIZEN CREE EDISON LED ARRAY
    3. Materials : PBT V0
    4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)


    Specification:

    Product Model1512-1919
    Voltage Rating
    72 V
    Amperage Rating3.6
    Weight3g
    Screw SizeM3
    Wire Strip Length6mm (.24")
    Wire18-22AWG Push-In (.32-.81mm2)
    Body MaterialPBT UL94 V-0
    ContactsBeryllium Copper Nickel Plated
    Holding ClipStainless Steel
    Screw Torque (Max)10 LBS
    Temp Rating155C
    RoHS CompliantYes
    Package Quantity1,000 per carton
    PackagingPlastic Trays
    Array Source

    CITIZEN CREE EDISON

    Array Series/
    UL File #E476326



    Advantages
    LED Array Holders, ideal for OEM light-fixture manufacturers, simplify the LED installation process for Cree energy-efficient arrays and reduce installation time with compression contacts that eliminate hand soldering.

    Changing political and social conditions have contributed to the LED’s success. This Solerless holder meets the need for time saving and reduce working procedure solutions unlike any other holder. This is where the COB LED Array Connector is groundbreaking

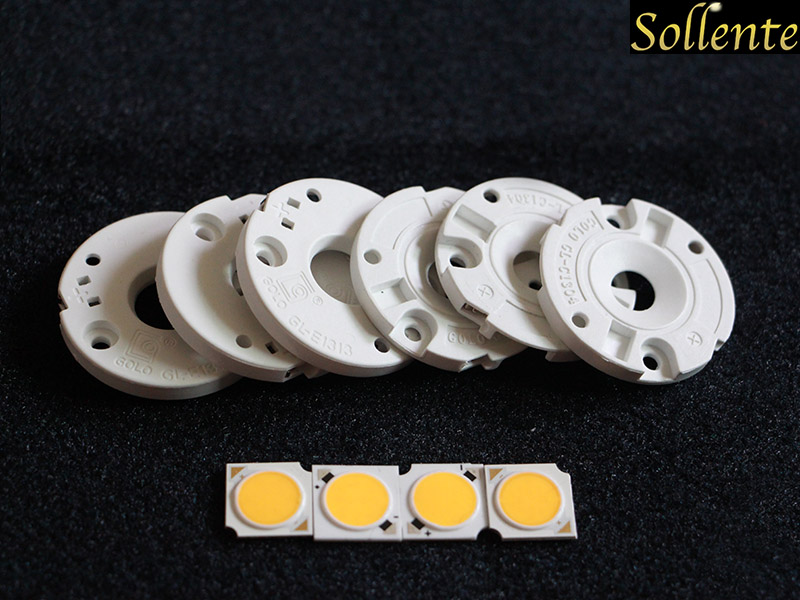

    COB HOLDER Picture:




    Related COB HOLDER:

    Model No.Lens DimensionsMatch Led

    SOE-CH1512

    D35mm*H4.15mmCXA1507, CXA1512, CXA1520

    SOE-CH1816

    D35mm*H4.15mmCXA1816, CXB1820, CXA1850

    SOE-CH1830

    D35mm*H4.15mmCXA1830

    SOE-CH2520

    D39mm*H4.15mmCXA2520, CXB2530, CXA2540, CXA2590

    SOE-CH3050

    D44mm*H4.15mmCXA3050, CXA3070

    SOE-CH1926

    D35mm*H4.15mmCitizen Series: AC COB CLL296/297/298
    SOE-CH1313D36mm*H4mm

    Citizen Series: CLL022, CLU024, CLU026

    Edison Series: HM05, HM09, HM13

    SOE-CH1919D36mm*H4mm

    Citizen Series: CLL032, CLU034, CLU036

    Edison Series: HM16, HM24, HM30
