    Aluminized Plastic LED Reflector Cup For VERO 18 Led Bean Container Light

    Ask Lasest Price
    Brand Name : Sollente
    Model Number : SOE-COB-R75-38
    Payment Terms : T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 10000 pcs / week
    Delivery Time : 3-14 working days
    • Product Details
    • Company Profile

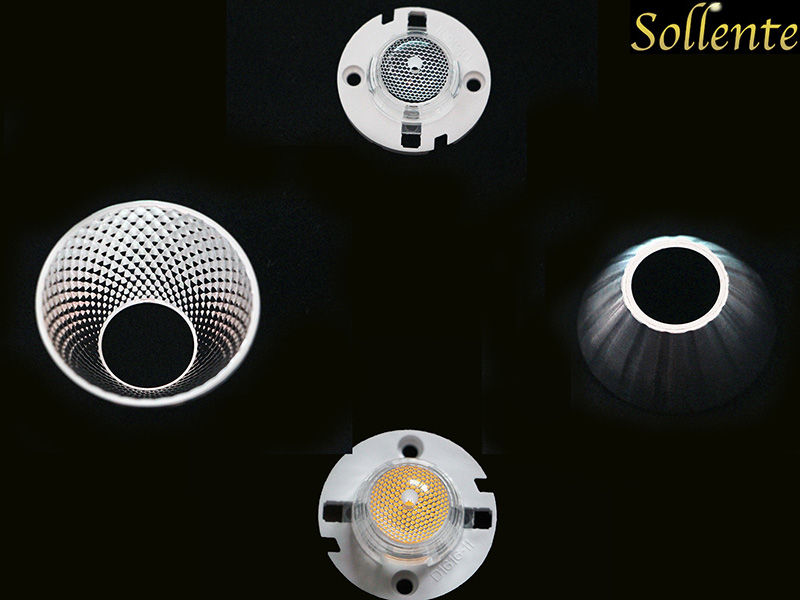

    Aluminized Plastic LED Reflector Cup For VERO 18 Led Bean Container Light

    Aluminized Plastic COB Led Reflector For VERO 18 Led Bean Container Light


    Quick Detail:


    1. Dimension: Dia 75mm Height 45mm Bottom hole D28.5mm

    2. Beam Angle: 10, 23, 38 degree

    3. Match Led: SHARP, Cree, Edison, Citizen

    4. Materials : Optical Grade PC

    5. Accessories: COB holder, Light Pipe

    6. Efficiency: 91%


    Specification:


    TypeOptical reflector
    Model NumberSOE-COB-R75-38
    MaterialPC
    View Angle(Fwhm)38°
    Reflective Efficience90%
    DimensionΦ50*30*21.5mm (diameter*height)
    Use Temperature-35℃~+120
    Payment TermT/T, PayPal, Western Union
    PackingBubble bag and box
    PortShenzhen
    Lead Time3-7 days for sample order,7-15 days for mass produc
    ApplicationSpotlight, down light, track light

    Matched Led:


    CREECITIZENSHARPLUMILEDSXXXXEDISON
    CXA 13XXCLL 020
    1215
    CXM-71202HM05
    CXA 15XXCLL 0302024CXM-9HM09
    CXA 25XXCXM-14HM13

    Related Led Reflector:


    Model No.Lens angleLens DimensionsMatch Led

    SOE-COB-R45-10/23/38


    10° 23° 38°D45mm*H30mmCXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13

    SOE-COB-R50-10/23/38


    10° 23° 38°D50mm*H30mmCXA 13xx CXA 15xx CLL020 CXM-9 HM09 HM13

    SOE-COB-R63-10/23/38


    10° 23° 38°D63mm*H40mmCXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

    SOE-COB-R69-10/23/38


    10° 23° 38°D69mm*H40mmCXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

    SOE-COB-R75-10/23/38


    10° 23° 38°D75mm*H45mmCXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

    SOE-COB-R83-10/23/38


    10° 23° 38°D83mm*H45mmCXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

    SOE-COB-R92-10/23/38


    10° 23° 38°D92mm*H45mmCXA 15xx 18xx 25xx HM05 HM30 CLL020/030 CXM-7/9/14

    SOE-COB-R108-10/23/38


    10° 23° 38°D108mm*H38mmCXA 15xx 18xx 25xx HM05 HM30 CLL030/040 CXM-7/9/14

    Product Application:
    Led Track Lighting
    Led Bean Container Light
    Led Spot Light

    Led Down Light
