    10W COB LED Holder PBT V0 For CLU036 COB LED Lights cRU Approved

    Ask Lasest Price
    Brand Name : Sollente
    Model Number : E1919
    Payment Terms : T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 100000 pcs / week
    Delivery Time : 10-18 working days
    • Product Details
    • Company Profile

    10W COB LED Holder PBT V0 For CLU036 COB LED Lights cRU Approved

    cRU Approved 10W COB LED Holder Use for CLU036 COB LED Lights

    Quick Details:

    1. Dimension: Diameter 36mm H4mm
    2. Match Led: CITIZEN CLL 032 034 036, EDISON HM16 24 30
    COB Led Array base 19.2x19.2mm Luminous surface diameter 17mm
    3. Materials : PBT V0
    4. Wire Spec. 18AWG, 20AWG, 22AWG (0.32-0.81m㎡)


    Specification:


    Product ModelE1919
    Voltage Rating
    72 V
    Amperage Rating3.6
    Weight3g
    Screw SizeM3
    Wire Strip Length6mm (.24")
    Wire18-22AWG Push-In (.32-.81mm2)
    Body MaterialPBT UL94 V-0
    ContactsBeryllium Copper Nickel Plated
    Holding ClipStainless Steel
    Screw Torque (Max)10 LBS
    Temp Rating155C
    RoHS CompliantYes
    Package Quantity1,000 per carton
    PackagingPlastic Trays
    Array Source

    CITIZEN, EDISON

    Array SeriesCITIZEN CLL 032 034 036, EDISON HM16 24 30
    UL File #E476326


    It's a single piece, solderless connector for CITIZEN CLL 032 034 036, EDISON HM16 24 30 or COB Led Array base 19.2x19.2mm Luminous surface diameter 17mm
    Simple screw down and poke in wires makes assembly of the COB device and easy and clean installation.

    The COB LED Holder for the CITIZEN and EDISON Array is an electrical connector and mechanical holder to simplify installation of the COB LED Array without solder connections.


    Material:

    Polybutylene terephthalate (PBT) is a thermoplastic engineering polymer that is used as an insulator in the electrical and electronics industries. It is a thermoplastic (semi-)crystalline polymer, and a type of polyester.

    PBT is resistant to solvents, shrinks very little during forming, is mechanically strong, heat-resistant up to 150 °C (or 200 °C with glass-fibre reinforcement) and can be treated with flame retardants to make it noncombustible.

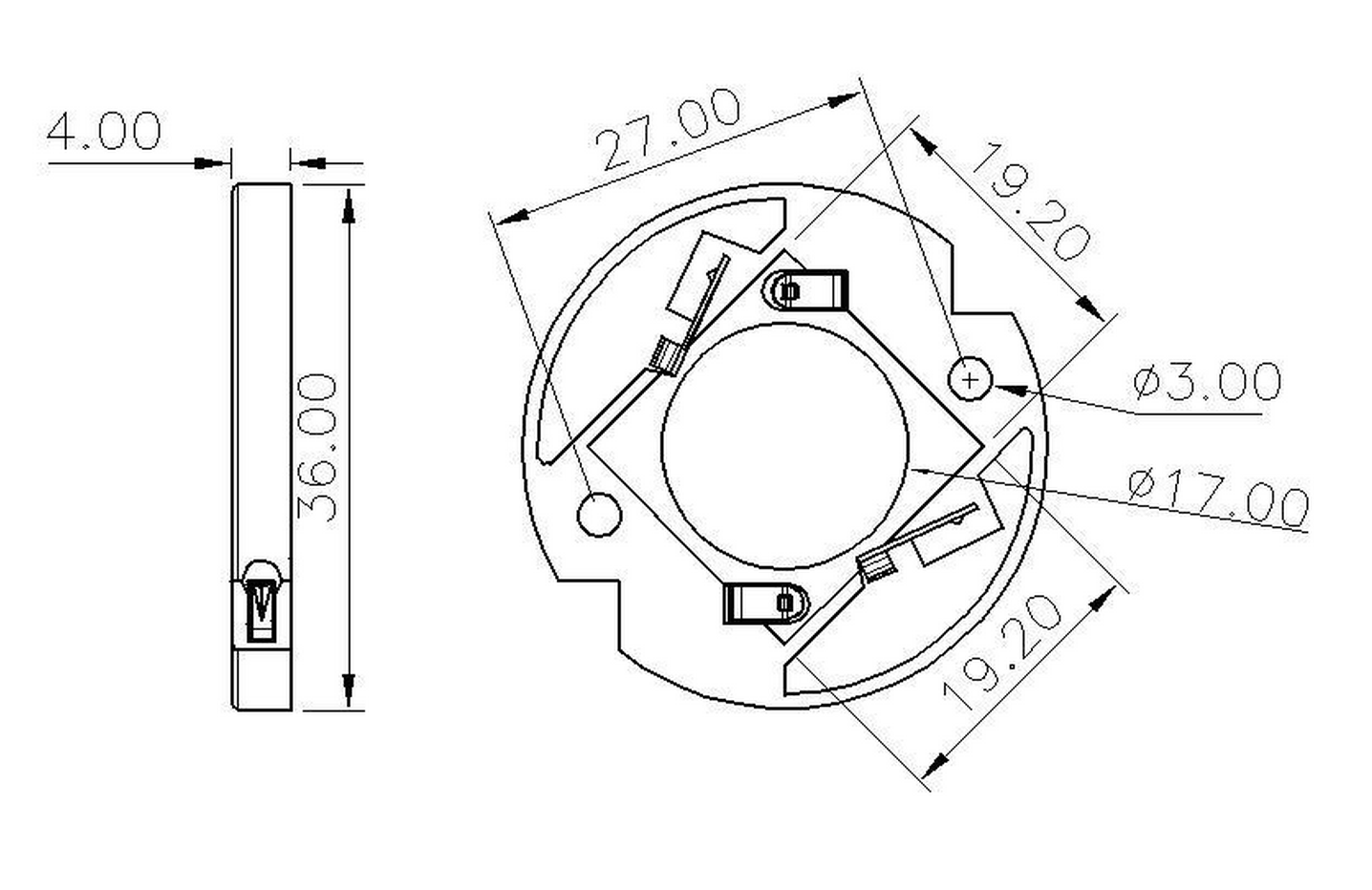

    1919 COB HOLDER Drawing:



    Related COB HOLDER:

    Model No.Lens DimensionsMatch Led
    C1512
    D35mm*H4.15mmCXA1507, CXA1512, CXA1520
    C1816
    D35mm*H4.15mmCXA1816, CXB1820, CXA1850
    C1830
    D35mm*H4.15mmCXA1830
    C2520
    D39mm*H4.15mmCXA2520, CXB2530, CXA2540, CXA2590
    C3050
    D44mm*H4.15mmCXA3050, CXA3070

    C3590


    D59.5mm*H3mm+3mmCXA/CXB3590
    CT1926
    D35mm*H4.15mmCitizen Series: AC COB CLL296/297/298
    E1313D36mm*H4mmCitizen Series: CLL022, CLU024, CLU026

    Edison Series: HM05, HM09, HM13
    E1919D36mm*H4mm

    Citizen Series: CLL032, CLU034, CLU036
    Edison Series: HM16, HM24, HM30
