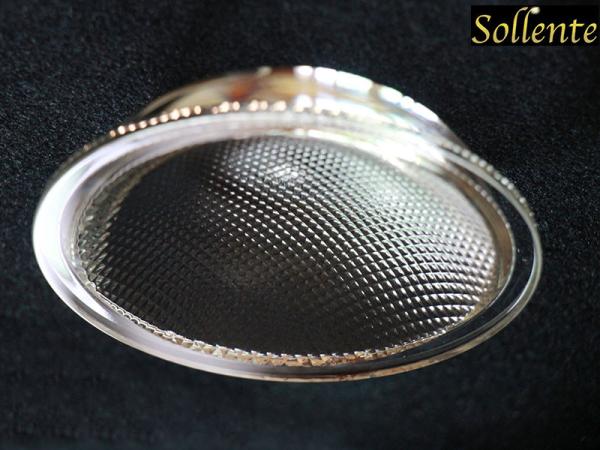

Non glare COB Led glass lens for CXA Led , Led Street Lamp
Accessories
Quick Detail:
1. Dimension: Dia 114mm Height 34mm
2. Beam Angle: 120degree
3. Match Led: 10-100w LEDs
4. Materials : Borosilicate glass
5. Accessories: Metal holder, silicon gasket
6. Chips Package size < 94mm
7. Application: Industail Light , Led high bay light , Flood light
, Flashing light , Led Spot Light
Specifications:
| Product Name | Non glare COB Led glass lens for CXA Led , Led Street Lamp
Accessories |
| Model No | SOE-HB114A |
| Main parts | Optical glass Lens+silicone gasket+metal holder+Multichip
LED+Driver |
| Lens Material | Borosilicate Glass |
| MOQ | 10pcs |
| Lens size | Diameter 114mm height 34mm |
| Sample | 3 days |
| Delivery | 7-9 days |
| Certificate | ROHS, SGS |
| Quality guarantee | If you receive defective items, please email us a picture of the
defective part. We will send you replacement without extra charger,
or offer refund. |
| Main market | Europe, South America,North America, Asia |
Material Details:
Optical Grade High Borosilicate Glass
Light transmittance (2mm): 92%
High hardness
Never get yellow comparing with PMMA material
Refractive index : 1.474
Thermal expansivity : (3.3 ± 0.1)×10-6/K
Heat resistant : working at -50~550 °C
Density (20 °C) : 2.23 gcm-1
Borosilicate Glass, This material increases light transmittance
through the lens compared to plastics and lower-quality glass.
114mm Led Glass Lens Drawing:
Led Glass Lens Distribution:
Related Glass lens:
| Model No. | Lens angle | Lens Dimensions | Match Led |
SOE-HB50-40
| 40° | D50mm*H28mm | 10-100W |
SOE-HB50-90
| 90° | D50mm*H24mm | 10-100W |
SOE-HB60-35
| 35° | D66mm*H48mm | 10-100W |
SOE-HB60-60
| 60° | D66mm*H34mm | 10-100W |
SOE-HB60-90
| 90° | D66mm*H17mm | 10-100W |
SOE-HB78-45
| 45° | D78mm*H44mm | 10-100W |
SOE-HB78-60
| 60° | D78mm*H40mm | 50-200W |
SOE-HB78-90
| 90° | D78mm*H35mm | 50-200W |
SOE-HB78-120
| 120° | D78mm*H26mm | 50-200W |
SOE-HB100-60
| 60° | D100mm*H39mm | 50-200W |
SOE-HB100-90
| 90° | D100mm*H35mm | 50-200W |
SOE-HB100-120
| 120° | D100mm*H33mm | 50-200W |
SOE-HB109-120
| 120° | D109mm*H33mm | 50-200W |
SOE-HB130-110
| 110° | D130mm*H35mm | 50-300W |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 4-6 working days, mass production time needs 10-18
working days.
Q3. Do you have any MOQ?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
